Self tapping metal to wood screws and roofing screws

BDN Fasteners offers TIMBER-Tite™ and TRUSS-Tite™ self-tapping metal roofing screws.  Self-tapping metal to wood screws, TIMBER-Tite screws are designed for fixing metal roofing sheets or wall claddings to timber, whereas TRUSS-Tite™ is designed to fix steel roofs and floor trusses.

How to use self tapping screws for metal?

Basically, all self-drilling and self-tapping screws are able to tap threads, where the main difference is that self-tapping screws normally come with either a blunt head, sharp point, or a reduced drill point.

Self-Tapping Metal Roofing Screws Series – TRUSS-Tite™

Blunt headed metal roofing screws such as the TRUSS-Tite™ is designed for truss components assembly, fixing into steel.  These types of steel normally come with pre-punched or pre-drilled holes, and the blunt, slightly tapered leading threads makes it easier to fix the sheets down.

BDN FASTENERS® BN3
BDN FASTENERS® BN3
Frame Screw TRUSS-Tite™ FIXING STEEL ROOF AND FLOOR TRUSSES. BDN FASTENERS®
Frame Screw TRUSS-Tite™ FIXING STEEL ROOF AND FLOOR TRUSSES. BDN FASTENERS®
Frame Screw TRUSS-Tite™ FIXING STEEL ROOF AND FLOOR TRUSSES. BDN FASTENERS®
Frame Screw TRUSS-Tite™ FIXING STEEL ROOF AND FLOOR TRUSSES. BDN FASTENERS®
BDN FASTENERS® TRUSS-Tite™
BDN FASTENERS® TRUSS-Tite™
BDN FASTENERS® METAL-Tite™ Truss to Plate Connection -1
BDN FASTENERS® METAL-Tite™ Truss to Plate Connection -1

Self-Tapping Metal to Wood Screws Series – TIMBER-Tite™

Our sharp pointed metal to wood screws, TIMBER-Tite™ are designed for fixing roof sheeting to timber.  The longer versions such as the T17CG1265C3N or T17CG1250C3N are designed for crest fixing and shorter versions such as the T17H1020C3N are designed for valley fixing.   People ask why screws should be fixed down on the crest but not the valley.  The main reason being water runs by gravity and flows to the lowest point, and if fixed on the valleys on rooftops, might increase the risk of water pooling around the screws and with time, cause rust.

Shorter self-tapping metal to wood screws which come with what we call a “reduced” drilling point, provides the same function as a sharp drilling point, but drills faster through thin metal sheeting, and is much more effective at clearing off excess swarf, as it is difficult if impossible to add flutes on smaller sharp pointed screws to due manufacturing limitations.

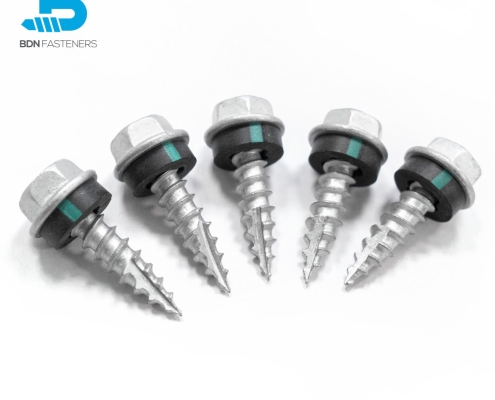

Type 17 Timber Screws TIMBER-Tite™ Fixing roof sheeting to timber - BDN Fasteners® Made in Taiwan
Type 17 Timber Screws TIMBER-Tite™ Fixing roof sheeting to timber - BDN Fasteners® Made in Taiwan
Type 17 Timber Screws, 12-11x50mm (TIMBER-Tite™)-BDN Fasteners® Made in Taiwan
Type 17 Timber Screws, 12-11x50mm (TIMBER-Tite™)-BDN Fasteners® Made in Taiwan
Self-Tapping Screws TIMBER-Tite™ Fixing roof sheeting to timber and light metal - BDN Fasteners® Made in Taiwan
Self-Tapping Screws TIMBER-Tite™ Fixing roof sheeting to timber and light metal - BDN Fasteners® Made in Taiwan
TIMBER-Tite™ Fixing roof sheeting to timber: crest fixing fasteners
TIMBER-Tite™ Fixing roof sheeting to timber: crest fixing fasteners
TIMBER-Tite™ Fixing roof sheeting to timber: valley fixing fasteners
TIMBER-Tite™ Fixing roof sheeting to timber: valley fixing fasteners

Features of BDN Self-Tapping Roofing Screws

For roofing sheet fixing screws, always check if they come with a knurled, fluted, or slotted shank, and if the upper threads are larger in diameter compared to the lower threads.  You might notice that the majority of BDN self-drilling and self-tapping roofing screws are equipped with both.  The larger diameter upper threads provide good pullout strength for the whole setup under high winds and the slotted Scratshank design clears out excess swarf which might damage EPDM washers if leftover, which could result in leaks.

Fixing roof sheeting to timber

TIMBER-Tite™

Self-tapping metal to wood screws - Fixing roof sheeting to timber

Fixing steel roof and floor trusses

TRUSS-Tite™

Self-tapping metal roofing screws - Fixing steel roof and floor trusses

Are you looking for something?
View more products or directly contact us!

If you need more information about our products or get samples, we are very happy to help!

Contact Us

Learn more about roofing screws >>

Impact of metal roof screws rusting & how to prevent the damage

How to choose screws for metal roof installation properly?
