Framing, the skeletal structure of any building, demands robust and reliable fasteners to ensure structural integrity and longevity. While nails have historically dominated the framing landscape, screws are increasingly gaining traction due to their superior holding power, ease of use, and ability to be removed without significant damage. However, not all screws are created equal, and selecting the “best” screw for framing involves a nuanced understanding of several critical factors. But how do you determine the best screws for framing your project?
This guide breaks down the 10 most critical factors to consider when selecting framing screws, helping you achieve a structurally sound, long-lasting build.

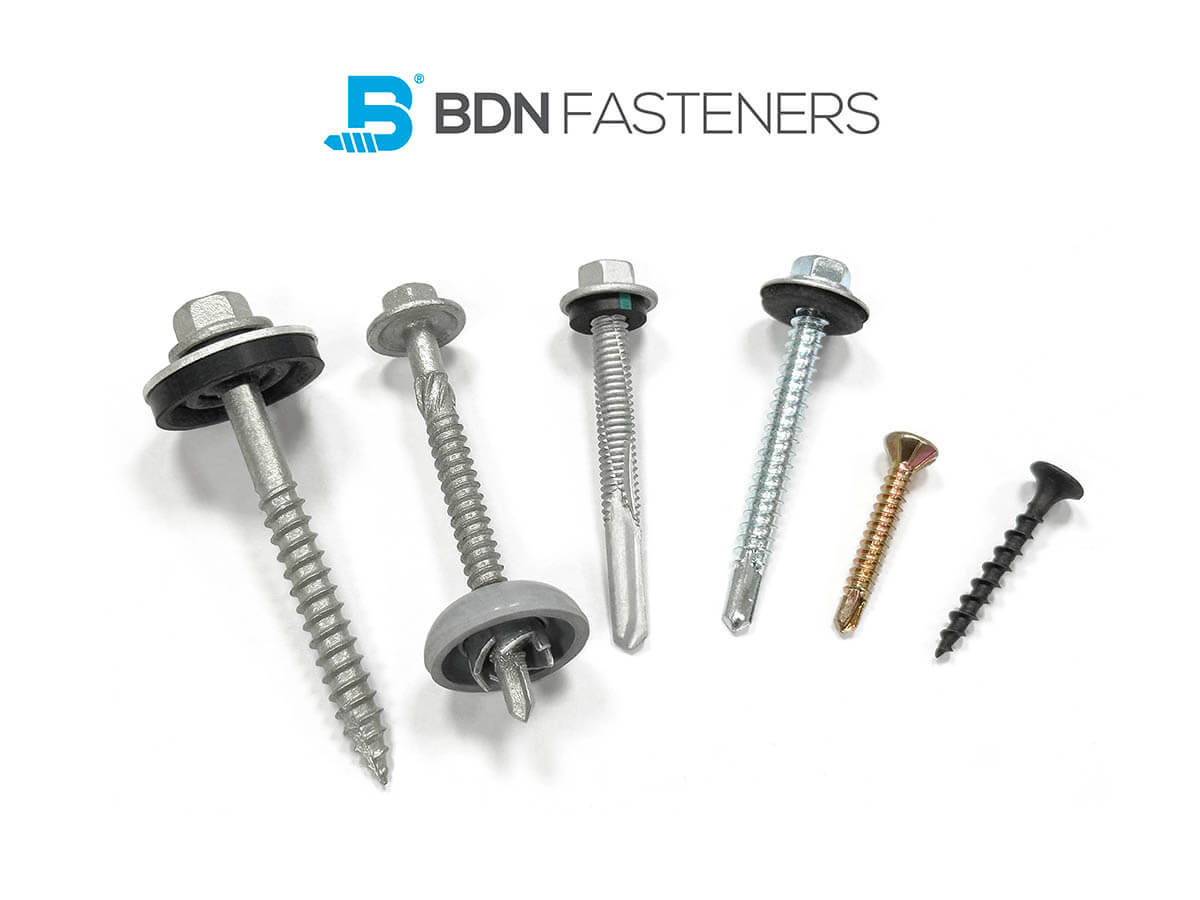

The material of the screw and its coating are paramount for durability and resistance to environmental factors. Most framing screws are made of hardened steel. For interior framing where moisture is not a concern, standard zinc-plated or black phosphate-coated screws are often sufficient. However, for exterior framing or areas prone to moisture (like bathrooms or basements), corrosion-resistant coatings such as Ruspert, Mechanical Zinc plating, or simply thick zinc plating finishes are essential, and preferably so if the installed area involves heavy industry or pollution.
When fixing on Timber, screw length is critical for achieving adequate penetration and holding power. A general rule of thumb is that the timber screw should penetrate at least two-thirds of the thickness of the timber substrate. For standard 50 x 100 x 40mm (2 x 4 x 1.5 in.) thick framing, screws typically range from 65 to 80mm (2.5 to 3 in.). Longer screws provide greater pullout values, or in layman’s terms – withdrawal resistance, but excessive length can lead to splitting of the wood or unnecessary expense. It’s crucial to match the screw length to the specific dimensions of the lumber being joined.
The diameter, or gauge, of the screw affects its shear strength and resistance to bending.
Common framing screws typically have gauges ranging from #8 to #10. A thicker screw (larger gauge) offers greater strength, making it suitable for load-bearing connections or where high stress is anticipated. However, larger diameters also require more torque to drive and can increase the risk of splitting thinner lumber. A balance between strength and ease of installation is key.
The threading of a screw is fundamental to its grip. Coarse threads are generally preferred for wood framing as they provide better bite and faster insertion. Some framing screws feature specialized thread designs, such as serrated threads or “cut” threads, which help reduce splitting and make driving easier, especially in dense hardwoods. Self-tapping or self-drilling tips can also eliminate the need for pilot holes, saving time and effort.
The head type influences how the screw sits flush with or countersinks into the wood, as well as the type of driver bit required. Common head types for framing include:
1. Phillips: Widely available but prone to cam-out (stripping).
2. Square (Robertson): Offers excellent cam-out resistance and good torque transfer.
3. Torx (Star): Provides superior cam-out resistance and allows for higher torque, making it a popular choice for professional framers.
4. Wafer or Washer Head: These heads have a larger bearing surface, which provides increased pull-through resistance, ideal for securing sheathing or subflooring.
The drive type refers to the recess in the screw head that accepts the driver bit. As mentioned, Torx and Square drives are generally preferred over Phillips for framing due to their superior grip and reduced cam-out, which leads to faster and more efficient installation, especially with impact drivers.
These are critical performance metrics. Shear strength refers to the screw’s ability to resist forces parallel to its axis (e.g., when two pieces of wood try to slide past each other). Withdrawal resistance, also known as pull-out strength, is the force required to pull the screw straight out of the material. Manufacturers often provide data on these properties, and it’s essential to select screws with adequate strength for the specific load-bearing requirements of the framing.
For structural framing, it is imperative to use screws that meet local building codes and have appropriate structural certifications. Many framing screws are specifically engineered and tested for structural applications and bear markings or documentation indicating their compliance. Using non-certified screws for load-bearing elements can compromise safety and lead to inspection failures. BDN manufactures framing screws according to set standards and customer requirements to ensure quality and performance.
While quality should never be sacrificed for cost, it’s important to consider the overall cost-effectiveness, especially for large projects. Bulk purchasing can reduce per-screw costs. However, investing in higher-quality screws that offer better performance and reduce installation time (due to less stripping or pre-drilling) can ultimately save money and effort in the long run.
The ease with which a screw can be driven is a practical consideration. Screws with self-drilling tips, specialized threads, and robust drive types (Torx/Square) significantly improve installation speed and reduce user fatigue. Compatibility with power tools, especially impact drivers, is also important for efficiency on a job site.
In conclusion, choosing the best screws for framing is not a one-size-fits-all decision. It requires a comprehensive evaluation of material, length, diameter, thread design, head and drive types, structural performance, code compliance, cost, and ease of installation. By carefully considering these ten key factors, builders can select fasteners that not only meet the immediate demands of the project but also contribute to the long-term strength, stability, and safety of the framed structure. The right screw, meticulously chosen, is an investment in the integrity of the entire build.
