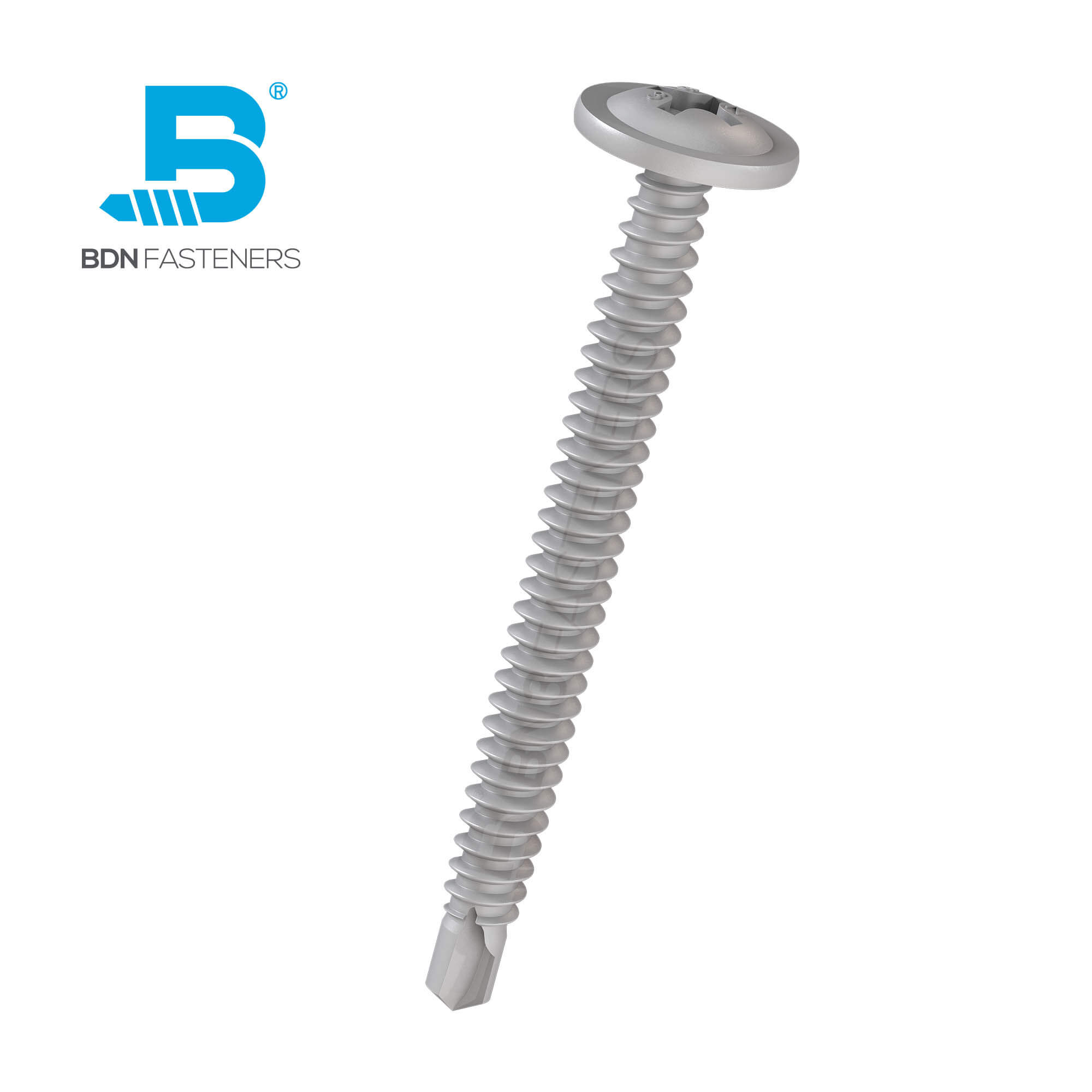

Clip-Fix Button Head Self-Drilling Screws
Suited for clip fixing to batten supports
BDN Clip-Fix button head self-drilling screws is suited for concealed and pierce fixing snap-lock type cladding system panels to thin gauge steel battens. Clip-Fix’s low-profile button head are concealed and will not interfere when panels are snapped into position, providing a clean finish.
STEEL PENETRATION
Max 2.5mm thick
ADAPTER TO USE
Philips Bit (PH2+)
PRODUCT FEATURES
Low profile Button head
Philips Drive
Thunder-Shot Drilling Point
Suited for clip fixing to batten supports
PART NUMBER |
|
SDBT0845C3 8-18 x 45mm |
|
SDBT0865C3 8-18 x 65mm |
For size not indicated below , please contact for further information
BN3 Head Mark
|
Surface Coating
|
|
| Corrosion Resistance | Class 3 | |
| Coating Type | Zinc+ Organic Coating (Ruspert) | |
|
SST 1000 hrs + Kesternich 7 cycles |
||
FM Approval Supplier
BIS Certification
ISO 9001 Certification
