Home » METAL-Tite » METAL-Tite™ Crest fixing fasteners

FIXING ROOF SHEETING TO METAL

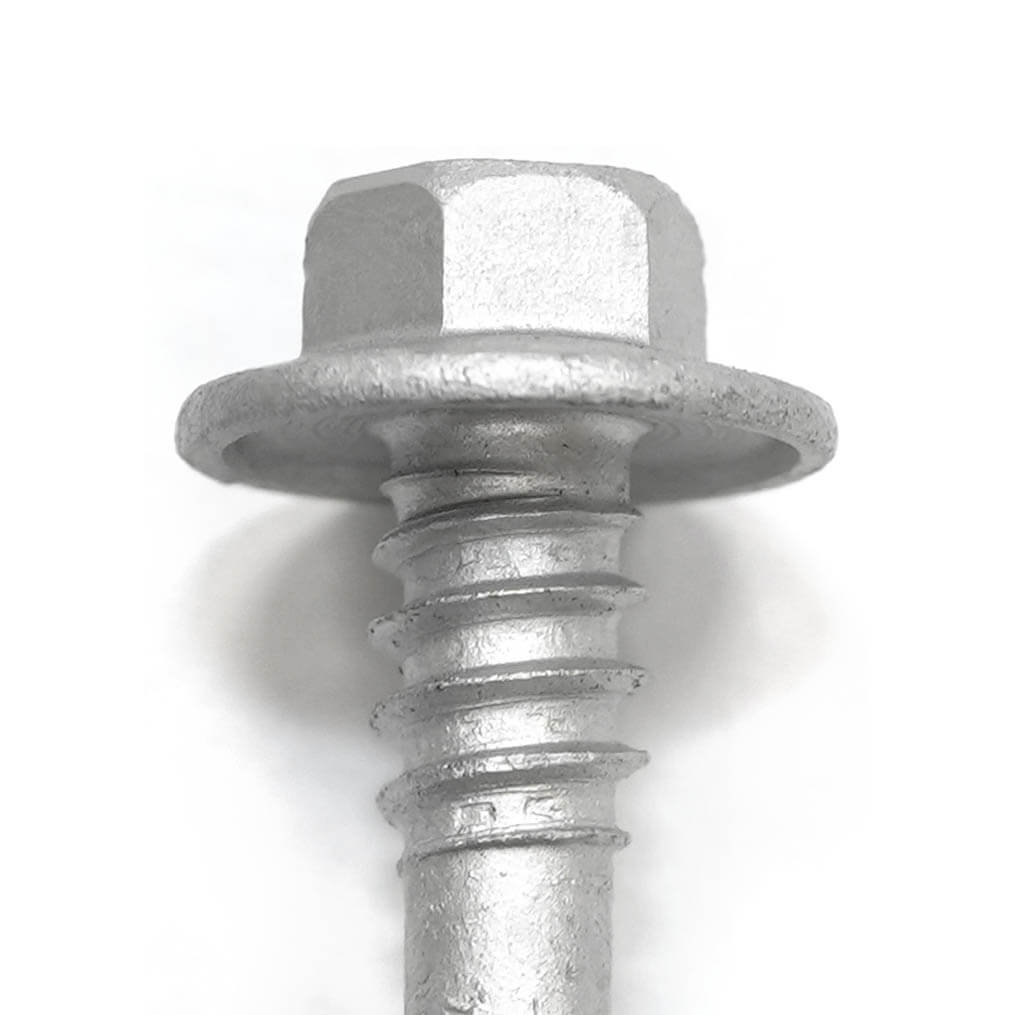

METAL-Tite™ Crest Fixing Fasteners – Double Thread

Carbon steel fasteners for fixing steel sheets onto steel substrates

STEEL PENETRATION

Max 6.0mm thick
For #12 gauge

ADAPTER TO USE

Magnetic Hex Socket (5/16″)

PRODUCT FEATURES

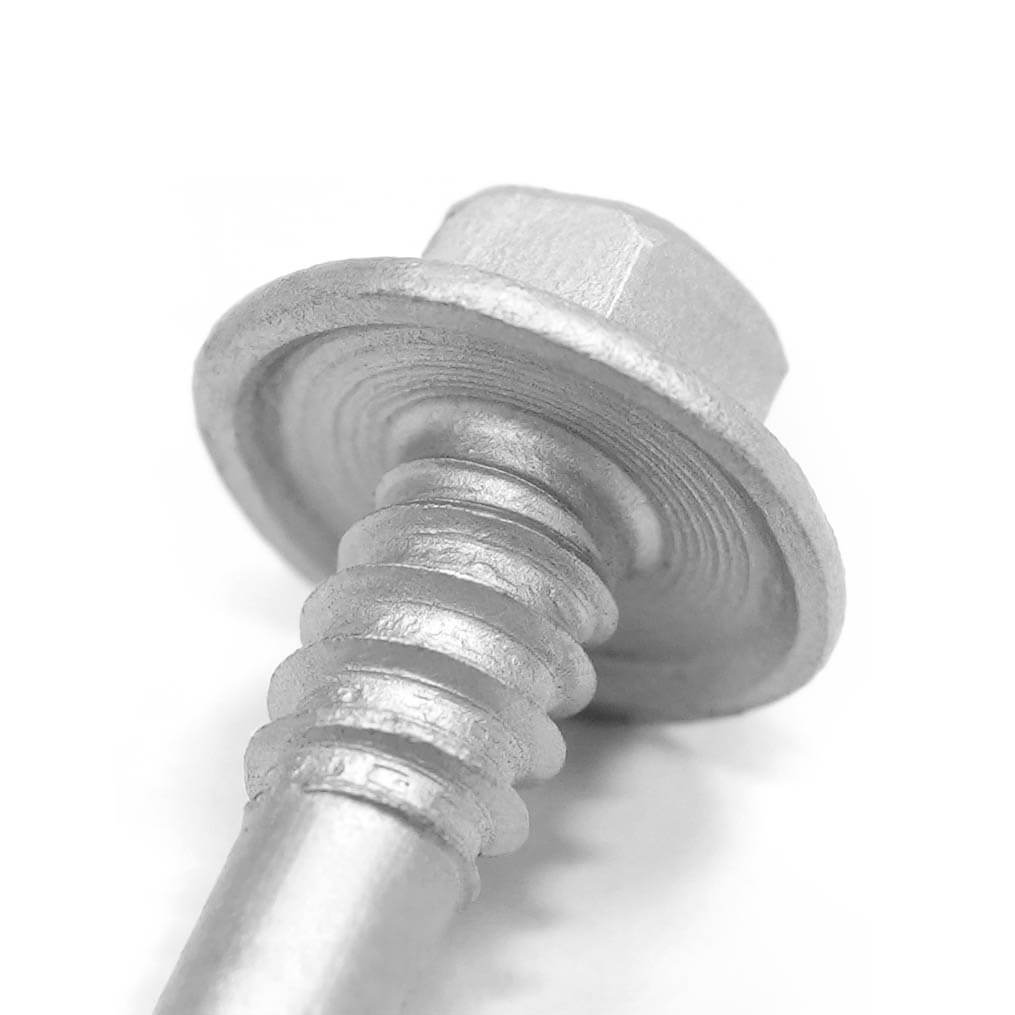

Hex Washer Flange
Dual-Edge® Drill Point
Double Thread
Scratshank

WASHER

Eco-BDN® Green Washer

Eco-BDN Green Washer

METAL-Tite - Crest fixing fasteners - Double Thread
六角法蘭頭鑽尾螺絲(雙層牙)
六角法蘭頭鑽尾螺絲(雙層牙)
六角法蘭頭鑽尾螺絲(雙層牙) 01
六角法蘭頭鑽尾螺絲(雙層牙) 01
六角法蘭頭鑽尾螺絲(雙層牙) 02
六角法蘭頭鑽尾螺絲(雙層牙) 02

METAL-Tite™ Crest Fixing Fasteners – Full Thread

Carbon steel fasteners for fixing steel sheets onto steel substrates

STEEL PENETRATION

Max 6.0mm thick
For #12 gauge

ADAPTER TO USE

Magnetic Hex Socket (5/16″)

PRODUCT FEATURES

Hex Washer Flange
Dual-Edge® Drill Point
Full Thread

WASHER

Eco-BDN® Green Washer

Eco-BDN Green Washer

METAL-Tite - Crest fixing fasteners - Full Thread
六角法蘭頭鑽尾螺絲(全牙)
六角法蘭頭鑽尾螺絲(全牙)
六角法蘭頭鑽尾螺絲(全牙)01
六角法蘭頭鑽尾螺絲(全牙)01
六角法蘭頭鑽尾螺絲(全牙)02
六角法蘭頭鑽尾螺絲(全牙)02

BDN METAL-Tite™ Crest fixing fasteners are also offered in a special 9mm thick steel penetration version. Designed to not only drill through thick, hardened, or complex alloy steel, but can also pass stringent 1mm + 2mm + 3mm, and 4.5mm + 6mm penetration tests

PART NUMBER

For size not indicated below , please contact for further information

Full Thread

Double Thread

SDHC1245C3N   12-14 x 45mm SDHCG1250C3N   12-14 x 50mm
SDHC1255C3N   12-14 x 55mm SDHCG1250C3N   12-14 x 50mm
SDHC1265C3N   12-14 x 65mm SDHCG1255C3N   12-14 x 55mm
SDHC1275C3N   12-14 x 75mm SDHCG1265C3N   12-14 x 65mm
SDHC1290C3N   12-14 x 90mm SDHCG1275C3N   12-14 x 75mm
SDHCG1285C3N   12-14 x 85mm
SDHCG12110C3N   12-14 x 110mm
SDHCG12130C3N   12-14 x 130mm

BN3 Head Mark

BDN FASTENERS® BN3

Surface CoatingBN3 Self-Drilling Screws Surface Coating

Corrosion Resistance Class 3
Coating Type Zinc+ Organic Coating (Ruspert)

SST 1000 hrs + Kesternich 7 cycles

BDN Fasteners Guarantee Letter

BDN Fasteners Guarantee Letter

SGS Kesternich test 15 cycles

BDN Fasteners - SGS Kesternich test 15 cycles

SGS Salt spray test 1000hrs

BDN Fasteners - SGS Salt spray test 1000hrs

If you need more information about our products or get samples, we are very happy to help!

Fill in the form below and we’ll get back to you as soon as possible.

Send us mail

View more products or directly contact us!

Contact Now

BDN Fasteners

BDN Fasteners (Broaden Worldwide Co., Ltd) is an ISO-9001 Certified Quality Supplier-Manufacturer of Australian Standard AS3566 self-drilling and self-tapping screws in various coatings for steel to steel to steel to timber applications. Our headquarters are in Taiwan and we operate sales and marketing offices in India and Thailand.
